High Performance Gear Shifter Mechanism Shift Lever Assembly – Smooth Gear Shifting & Durability
【 Product Description 】
A gear shifter mechanism (also known as a gear shifting mechanism or transmission shifter) is a critical component in vehicles, machinery, or equipment with manual transmissions system. It enables the operator to select and engage different gear ratios, controlling force transfer from the control handle in the driving room to the gear box.
【 Applications 】
• Commercial vehicles (trucks, buses – often with longer lever travels).
• Passenger cars (cars, SUVs, sports cars ets.).
• Racing or performance vehicles (short-travel shifters for faster gear changes).
【 Primary Functions】
• Gear selection: allows the operator to switch between forward gears, reverse, neutral, or specific drive modes (e.g., “P” for park, “D” for drive in automatic transmissions).
• Force transmission control: ensures smooth engagement and disengagement of gears to avoid mechanical damage and maintain operational efficiency.
• Safety features: incorporates self-locks (e.g., park locks, shift interlocks) to prevent unintended gear changes or vehicle movement.
【 Working Principle 】
The operator moves the shift lever, which transmits force via control cables to the transmission’s shift forks. Shift forks engage/disengage gears by sliding synchronizers or dog clutches.
【 Dimensional Details 】
Phidix offers two installation stroke options for compatibility with different shift ranges:
• 180mm – Ideal for shorter-throw or compact gear shift setups
• 205mm – Supports extended lever movement in heavy-duty or commercial applications
Mounting is achieved via a 4-hole base, which adapts easily to flat or inclined transmission housings.

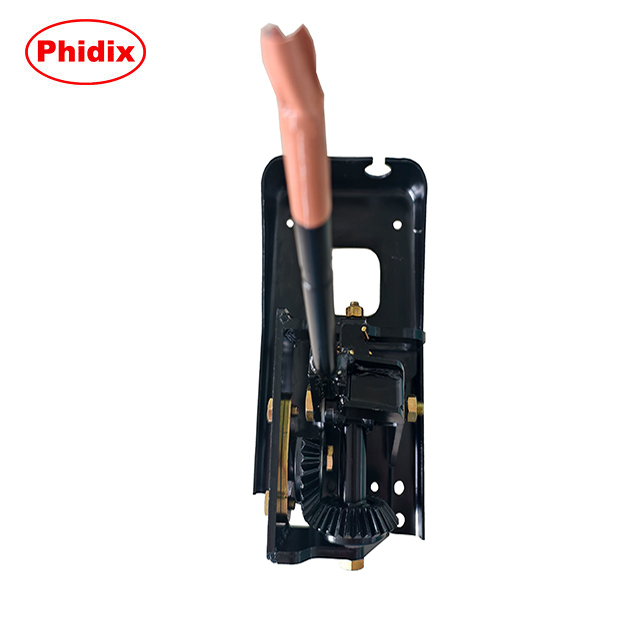

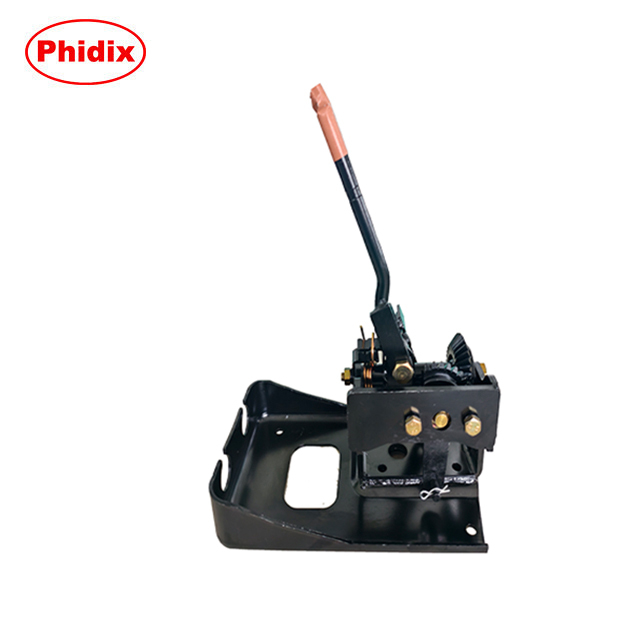

【 Real Picture 】
